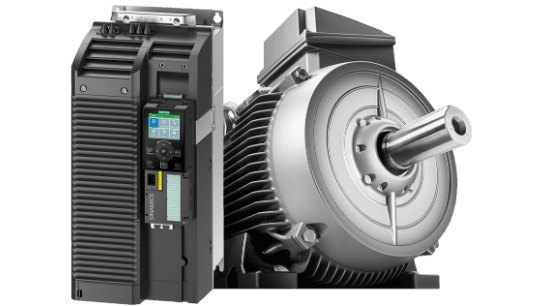

Vector Control and Direct Torque Control Drives
Mastering Drive Operations and Control: A Comprehensive Guide to Quadrants, Diode Rectifiers, Regen Drives, and Moreschedule1h
4.5(2)
Eduard Loiczli
•
92 Courses
• 311 Reviews
35 years of Power Engineering & Control. Specialized in power, control, automation, instrumentation, nuclear. My name is Eduard Loiczli, Doctor Engineer in Electrical Engineering. I started progr...
About this course
EIC
Course overview:
- Understand the 4-quadrant operation of a drive
- Difference between: Diode Rectifier, Full Regen Drives and ACTIVE FRONT END Drives
Application of Proper Control
Understand how to apply the proper control for an application:
- SCALAR – V/Hz
- VECTOR – Field Oriented Control
- Direct Torque Control – Accelerated Vector or Current Control
Drive Setup Tips
-
Understand how to avoid mistakes in setting up a VECTOR or DIRECT TORQUE CONTROL DRIVE
